Natural Source Based CO2 Recovery Plant

Ashirwad Carbonics (India) Pvt Ltd

Natural Source Based CO2 Recovery Plant is developed and engineered to operate at ambient conditions. It requires no external heating in order to prevent hydrate formation. We use the best quality raw materials to manufacture this plant in compliance with industry standards. These plants are used extensively to remove heavy components such as C3+ from fuel gas.

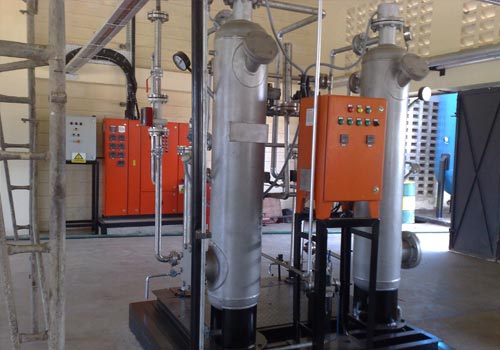

  • Natural Source Based Co2 Recovery Plant

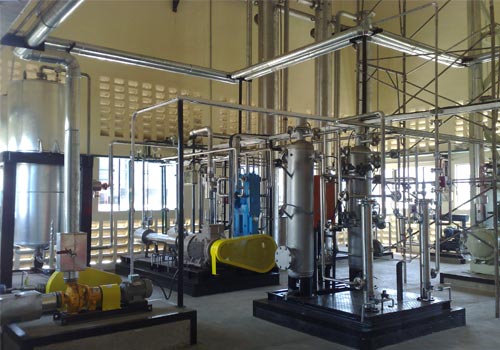

  • Natural Source Based Co2 Recovery Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Water flow indicator for safety
  • Fully automatic operation
  • Touch screen operator interface
  • Data logging
  • Stainless steel construction
  • Valves easily accessible for routine inspection & maintenance
  • Allow for auto switchover of towers and operation of hot air regeneration equipment
  • Temperature and pressure indication of key process variables


Ashirwad Carbonics (India) Pvt Ltd


Specifications

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility requirement for different capacities Co2 Recovery Plant
Plant Capacity Power Make Up Water Liquid Co2
Storage Capacity
Cooling Water
Kg/Hr. KW HP M3/Hr. Gal/Min In Metric Ton M3/Hr Gal/Min
100 33.5 44.9 0.4 1.76 15 7 30.8
250 83.7 112.3 1 4.4 25 17.5 77
500 167.5 22.1 6 2 8.8 50 30 132.1
750 251.2 336.9 5.9 13.2 100 45 198.2
1000 334.9 449.2 7.9 17.6 110 60 264.2
1500 502.4 673.8 6 26.5 150 90 396.3
2000 669.9 898.4 8 35.3 200 120 538.4
* Larger Capacities are available on request as per customer requirement.

Ashirwad Carbonics (India) Pvt Ltd

Flow Chart

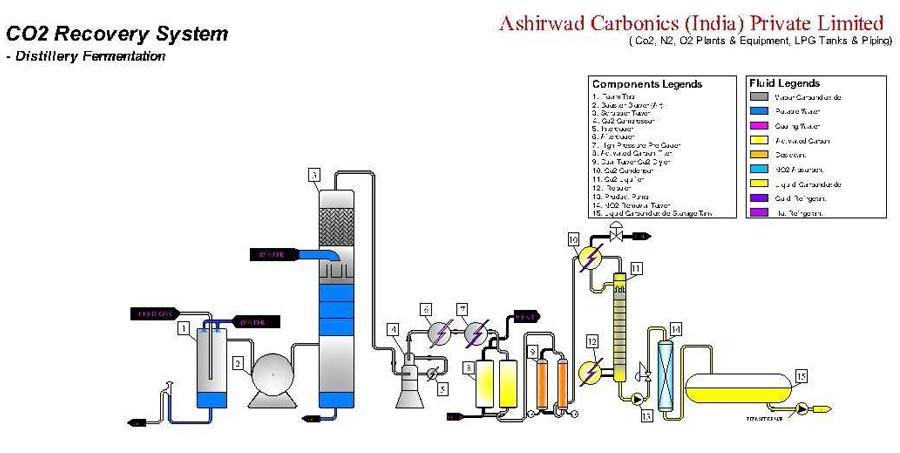

Natural Source Based Co2 Recovery Plant Flow Chart


Ashirwad Carbonics (India) Pvt Ltd

Production Process


  • Raw gas produced from the fermenters enters into the system in which the gas is fed in foam trap for removal of foam
  • The gas is pushed into the chain/series of scrubbing systems with the help of booster blower. It comprises of pre water scrubber, KMNO4 scrubber with dosing facilities
  • In this, the CO2 gas is washed properly using water
  • After this, the raw gas enters into a buffering vessel, from which, it moves towards two stage CO2 compressor for compression up to a desired pressure
  • For removal of odor, the raw gas is fed into the dual tower activated carbon filter
  • The raw gas is passed through the high pressure precooler into the dual tower CO2 dryer
  • It also passes through liquefaction system and nox removal tower
  • Finally, the liquid goes directly to the storage tank where the gas stores for a particular period of time
