Bio Mass Based Carbon Di-Oxide Production Plant

Ashirwad Carbonics (India) Pvt Ltd

Bio Mass Based Carbon Di-Oxide Production Plant is wide in demand in different sectors for the production plant. We assemble the plant integrating well developed technology, so that its working life, production and strength can be maximized. These production plants are of vital importance to power generation plants.

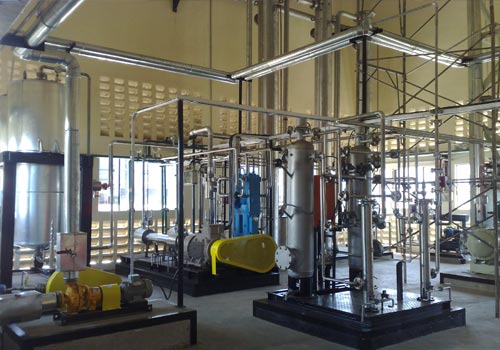

  • Bio Mass Based Carbon Di-Oxide Production Plant

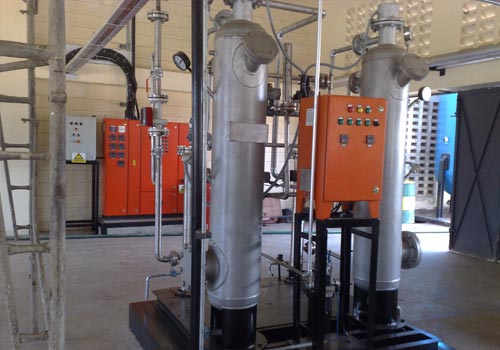

  • Bio Mass Based Carbon Di-Oxide Production Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Low cost of operation
  • Less maintenance required
  • Compact to design and layout
  • Simplified operation
  • No contamination of lubricating oil


Ashirwad Carbonics (India) Pvt Ltd


Specifications

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility Requirement for Different Capacity Co2 Production Plant
Plant Capacity Recommended Area Power Make Up Water Liquid Co2
Storage Capacity
Fuel Oil
Length Width Height
In Kg/Hr. Ft. Mtr. Ft. Mtr. In Ft. Mtr. KW GPM L/MIN In Metric Ton GPH L/HR
100 50 15.2 28 8.5 39 100 50 15.2 28 8.5 39 100
250 57 17.4 39 11.9 40 250 57 17.4 39 11.9 40 250
500 66 19.8 46 14 41 500 66 19.8 46 14 41 500
650 65 19.8 55 13.8 41 650 65 19.8 55 13.8 41 650
1000 72 21.9 55 16.8 48 1000 72 21.9 55 16.8 48 1000
* Larger Capacities are available on request as per customer requirement.

Ashirwad Carbonics (India) Pvt Ltd

Production Process


  • Fuel is burned under specific conditions controlled by PLC control panel
  • Post the scrubbing of water /soda in DCC tower/SO2 removal tower, the flue gas is absorbed in the monoethanolamine based solution present in absorber tower and then into the stripper tower which is subsequently heated by the combustion process to release the raw CO2 gas
  • The carbon dioxide is fed into the PTK, a purification train that comprises two KmNO4 towers
  • After passing through activated carbon filter, it is fed into two stage vertical or horizontal compressor and finally into the high pressure pre-cooler and then into the dryer
  • From there, it moves towards the liquefaction system in which screw compressor and R 404A is used as a refrigerant
  • Finally pure and liquefied carbon dioxide produced is fed into a bulk storage tank

Ashirwad Carbonics (India) Pvt Ltd

Components used in the plant


  • CO2 generator
  • Amine regenerator
  • SO2 removal tower
  • Absorber tower
  • Stripper tower
  • CO2 compressor
  • CO2 dryer
  • Liquefaction unit
  • PLC control panel
