Diesel Fired Based Carbon Di-Oxide Production Plant

Ashirwad Carbonics (India) Pvt Ltd

Diesel Fired Based Carbon Di-Oxide Production Plant operates in a continuous process. The process in this plant meets the international food grade quality standards. The carbon dioxide plant is used extensively in soft drinks companies, breweries and many other sectors. The plant is developed and designed with complete isolation between the combustion chamber and lubricating oil, thus preventing contamination.

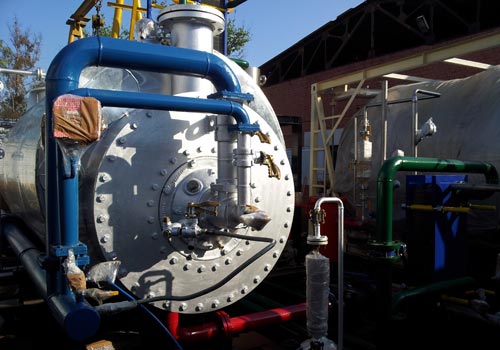

  • Diesel Fired Based Carbon Di-Oxide Production Plant

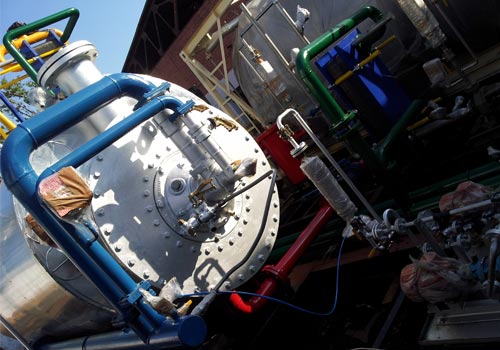

  • Diesel Fired Based Carbon Di-Oxide Production Plant

Ashirwad Carbonics (India) Pvt Ltd

Features


  • Prevents contamination of lubricating oil
  • Sturdy design including cross head and stuffing box
  • Improves CO2 absorption
  • Complete stripping of CO2
  • Low pressure purification
  • Promotes fuel-savings and cost effective


Ashirwad Carbonics (India) Pvt Ltd


Specifications

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility Requirement for Different Capacity Co2 Production Plant
Plant Capacity Recommended Area Power Make Up Water Liquid Co2
Storage Capacity
Fuel Oil
Length Width Height
In Kg/Hr. Ft. Mtr. Ft. Mtr. In Ft. Mtr. KW GPM L/MIN In Metric Ton GPH L/HR
100 50 15.2 28 8.5 39 11.9 58 8 30 10 11 42
250 57 17.4 39 11.9 40 12.2 111 20 76 30 27 102
500 66 19.8 46 14.0 41 12.5 170 39 148 50 55 207
650 65 19.8 55 13.8 41 12.5 200 48 182 50 71 267
1000 72 21.9 55 16.8 48 14.6 241 75 284 100 108 350
* Larger Capacities are available on request as per customer requirement.

Ashirwad Carbonics (India) Pvt Ltd

Flow Chart

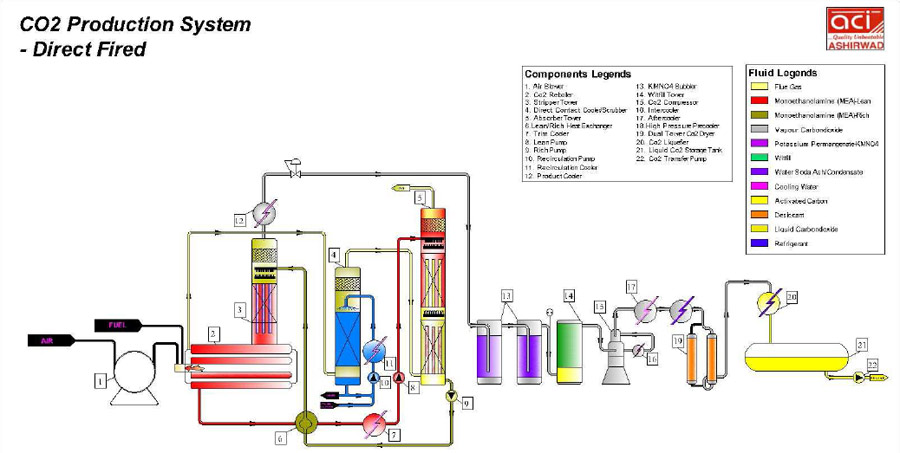

Diesel Fired Based Carbon Di-Oxide Production Plant Flow Chart


Ashirwad Carbonics (India) Pvt Ltd

Production Process


  • PLC panel controls the conditions under which the fuel is burned
  • Water /soda is scrubbed in DCC tower/SO2 removal tower and the flue gas is absorbed in the monoethanolamine based solution in absorber tower and then into the stripper tower which is then heated by the combustion process to release the raw CO2 gas
  • The carbon dioxide undergoes purification train commonly known as PTK comprising of two KmNO4 Towers
  • It is fed into activated carbon filter, from there, it led to two stage vertical or horizontal compressor and finally goes to the high pressure pre-cooler and then in to the dryer
  • Passing through the dryer, it moves towards the liquefaction system generally screw compressor and R 404A is used as a refrigerant in it
  • Finally pure and liquefied carbon dioxide can then feed to a bulk storage tank
