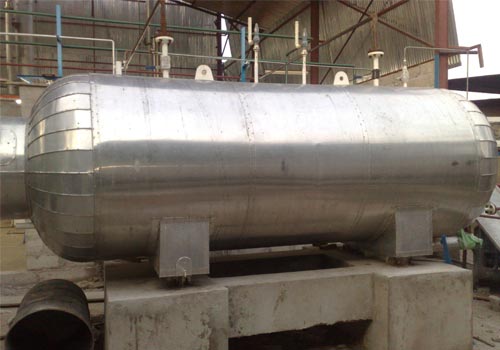

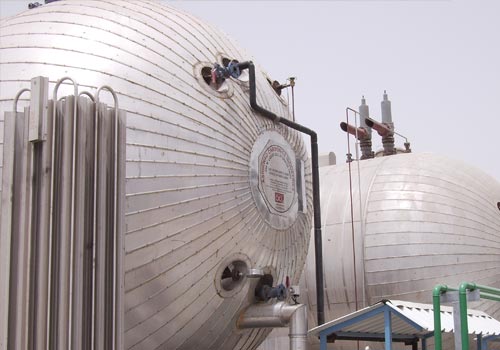

PUF Insulated CO2 Tanks

Ashirwad Carbonics (India) Pvt Ltd

PUF Insulated CO2 Tanks are widely used in industries for chemical storage purpose. This type of tank is suitable for both above the ground and underground storage. It can store varied liquids and gases under high pressure with complete safety from temperature change. Available in horizontal as well as vertical arrangement, the tanks are uniformly insulated with PUF (polyurethane foam).

  • PUF Insulated CO2 Tanks
  • PUF Insulated CO2 Tanks


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Sturdy design
  • Uniform PUF insulation
  • PUF insulation protects the tank from any change in temperature
  • Horizontal and vertical arrangement
  • Suitable for underground storage purpose
  • Can store liquids and gases under high pressure


Ashirwad Carbonics (India) Pvt Ltd


Specifications


  • Capacity : 1 MT lo 300 MT
  • Liquid level gauge : load cell
  • Pressure gauge : 0 to 350 psig (0 to 28Kg/cm2g) with 6" (152.4 mm) dial
  • Piping : Schedule 40/80 seamless pipe, 3000 lb forged steel fittings, ball type valves
  • Insulation : 6" (150 mm) polyurethane
  • Outer jacket : (1.0mm) pre-finished aluminum
  • Vaporizers : OPTIONAL - water heated vapouriser - capacities to 500 lbs/hr (227 kg/h)
  • Safeties : IS-2825 with SMPV rules approved direct spring loaded or pilot operated, sized for unconfined outdoor installation
  • Electrical characteristics : included in local panel
  • Pressure vessel : ASME/European Standard/IS-2825 coded for maximum working pressure of 300 psig (24 barg)

Ashirwad Carbonics (India) Pvt Ltd

Applications


  • Refrigeration unit
  • Bottling plant
  • Dry ice making plant
