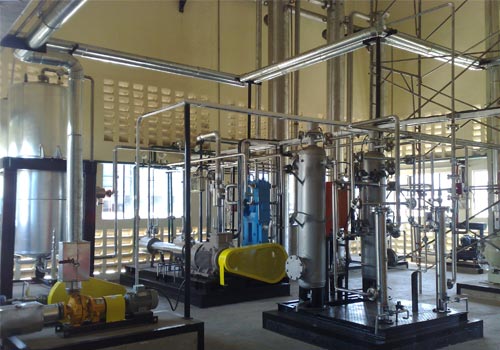

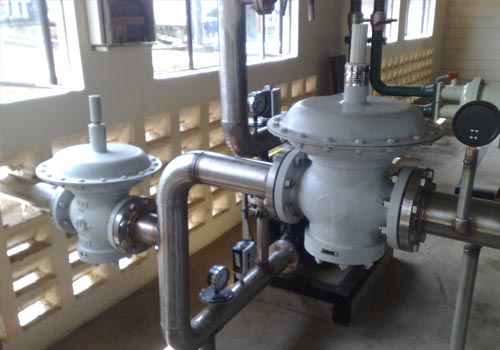

Industrial Source Based CO2 Recovery Plant

Ashirwad Carbonics (India) Pvt Ltd

Industrial Source Based CO2 Recovery Plant operates at ambient conditions. One of the main advantages with this recovery plant is that it requires no external heating to prevent hydrate formation. This CO2 recovery plant is used extensively in industry to remove heavy components such as C3+ from fuel gas.

  • Industrial Source Based CO2 Recovery Plant
  • Industrial Source Based CO2 Recovery Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Temperature and pressure indication of key process variables
  • Fully automatic operation
  • Touch screen operator interface
  • Water flow indicator for safety
  • Stainless steel construction
  • Valves easily accessible for routine inspection & maintenance
  • Data logging
  • Allow for auto switchover of towers and operation of hot air regeneration equipment


Ashirwad Carbonics (India) Pvt Ltd


Specifications

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility requirement for different capacities Co2 Recovery Plant
Plant Capacity Power Make Up Water Liquid Co2
Storage Capacity
Cooling Water
Kg/Hr. KW HP M3/Hr. Gal/Min In Metric Ton M3/Hr Gal/Min
100 33.5 44.9 0.4 1.76 15 7 30.8
250 83.7 112.3 1 4.4 25 17.5 77
500 167.5 22.1 6 2 8.8 50 30 132.1
750 251.2 336.9 5.9 13.2 100 45 198.2
1000 334.9 449.2 7.9 17.6 110 60 264.2
1500 502.4 673.8 6 26.5 150 90 396.3
2000 669.9 898.4 8 35.3 200 120 538.4
* Larger Capacities are available on request as per customer requirement.

Ashirwad Carbonics (India) Pvt Ltd

Production Process


  • Fermenters produce raw gas that is fed into the system of foam trap for removal of foam
  • Booster blower is used to push the gas into the series of scrubbing systems passing through pre water scrubber, KMNO4 scrubber with dosing facilities
  • In this, the CO2 gas is washed properly using water
  • After this, the raw gas is buffered in a vessel
  • From there, it enters into the two stage CO2 compressor for compression up to a desired pressure
  • The raw gas is fed into the dual tower activated carbon filter in which its odor is removed completely
  • The raw gas is passed through the high pressure precooler into the dual tower CO2 dryer and then into liquefaction system and nox removal tower
  • At the end, the liquid goes directly to the storage tank where the gas stores for a particular period of time
