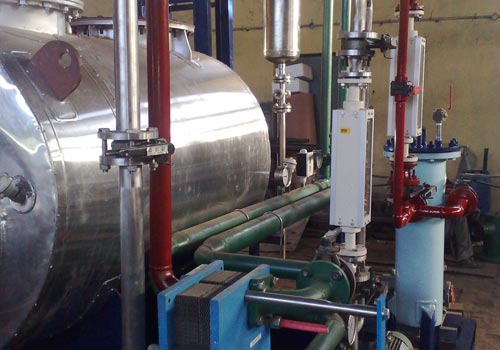

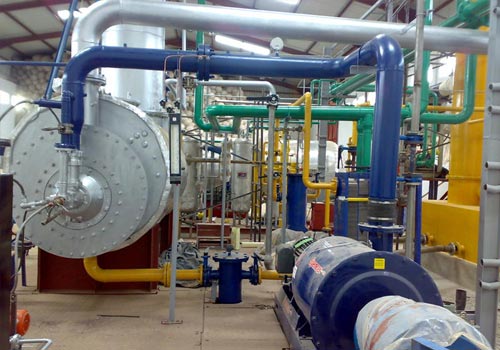

Natural Gas Based Carbon Di-Oxide Production Plant

Ashirwad Carbonics (India) Pvt Ltd

Natural Gas Based Carbon Di-Oxide Production Plant produces biogas that is utilized as a fuel in gas engine and combined heat and power (CHP) plant. On comparison to the electricity produced from fossil fuels, the electricity produced in the CHP plant is CO2 neutral. Each plant is assembled for a fully automatic operation and a simplified overall concept. Tested to the fullest extent possible and finish painted, the plant construction is done very carefully. In developing the plant, the selection of suitable raw material is done wisely so that the plant can have long working life with strength and maximum value of money.

  • Natural Gas Based Carbon Di-Oxide Production Plant
  • Natural Gas Based Carbon Di-Oxide Production Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Low operation and maintenance cost
  • Long service life
  • High production capacity
  • Fully automatic operation
  • Produces pure carbon dioxide
  • Compact in design and layout


Ashirwad Carbonics (India) Pvt Ltd


Specifications

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility Requirement for Different Capacity Co2 Production Plant
Plant Capacity Recommended Area Power Make Up Water Liquid Co2
Storage Capacity
Fuel Oil
Length Width Height
In Kg/Hr. Ft. Mtr. Ft. Mtr. In Ft. Mtr. KW GPM L/MIN In Metric Ton GPH L/HR
100 50 15.2 28 8.5 39 11.9 58 8 30 10 11 42
250 57 17.4 39 11.9 40 12.2 111 20 76 30 27 102
500 66 19.8 46 14.0 41 12.5 170 39 148 50 55 207
650 65 19.8 55 13.8 41 12.5 200 48 182 50 71 267
1000 72 21.9 55 16.8 48 14.6 241 75 284 100 108 350
* Larger Capacities are available on request as per customer requirement.

Ashirwad Carbonics (India) Pvt Ltd

Components used in the plant


  • CO2 generator
  • Amine regenerator
  • SO2 removal tower
  • Absorber tower
  • Stripper tower
  • CO2 compressor
  • CO2 dryer
  • Liquefaction unit
  • PLC control panel
