Distillery Based CO2 Recovery Plant

Ashirwad Carbonics (India) Pvt Ltd

Distillery Based CO2 Recovery Plant is wide in demand in soft drinks companies, breweries and many more related sectors for supplying fresh water and boiler feed water. Manufactured in accordance with industry standards, these plants are available in different capacities as to meet client's exact requirements. These are primarily used for various industrial applications such as refrigeration units, gas dryers and cylinders filling system. The continuous process in this recovery plant meets the international food grade quality standards.

  • Distillery Based CO2 Recovery Plant
  • Distillery Based CO2 Recovery Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Fully automatic operation
  • Stainless steel construction
  • Water flow indicator for safety
  • Valves easily accessible for routine inspection & maintenance
  • Allow for auto switchover of towers and operation of hot air regeneration equipment
  • Touch screen operator interface
  • Data logging


Ashirwad Carbonics (India) Pvt Ltd


Specifications

Ashirwad Carbonics (India) Private Limited, Ghaziabad (India)
Utility requirement for different capacities Co2 Recovery Plant
Plant Capacity Power Make Up Water Liquid Co2
Storage Capacity
Cooling Water
Kg/Hr. KW HP M3/Hr. Gal/Min In Metric Ton M3/Hr Gal/Min
100 33.5 44.9 0.4 1.76 15 7 30.8
250 83.7 112.3 1 4.4 25 17.5 77
500 167.5 22.1 6 2 8.8 50 30 132.1
750 251.2 336.9 5.9 13.2 100 45 198.2
1000 334.9 449.2 7.9 17.6 110 60 264.2
1500 502.4 673.8 6 26.5 150 90 396.3
2000 669.9 898.4 8 35.3 200 120 538.4
* Larger Capacities are available on request as per customer requirement.

Ashirwad Carbonics (India) Pvt Ltd

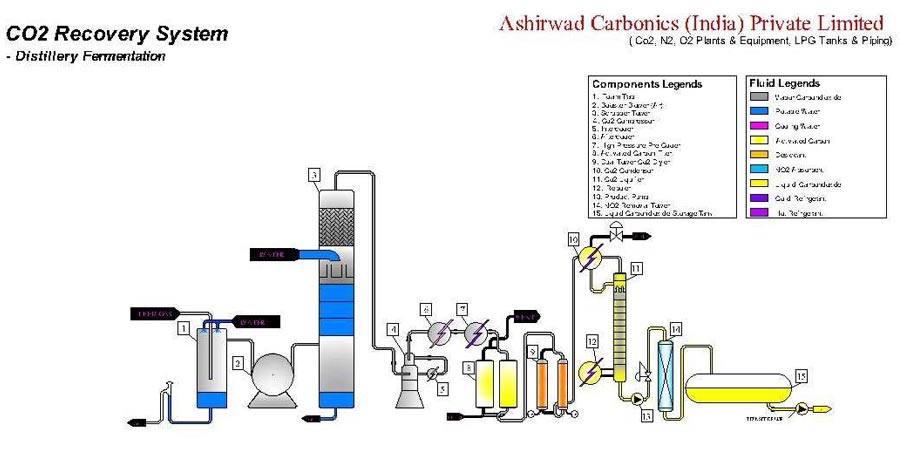

Flow Chart


Distillery Based CO2 Recovery Plant Flow Chart


Ashirwad Carbonics (India) Pvt Ltd

Production Process


  • Raw gas from fermenters is fed in to the system from where the gas is taken in foam trap where the foam is removed
  • With the help of booster blower, the gas is pushed in to the chain/series of scrubbing systems that comprises of pre water scrubber, Kmno4 scrubber with dosing facilities
  • In this chain of scrubbers, the CO2 gas is washed properly using water
  • After this, the raw gas gets buffered in a vessel
  • From there, it moves towards two stage CO2 compressor where the gas is compressed up to a desired pressure
  • Raw gas goes to the dual tower activated carbon filter for removal of odor
  • The raw gas is then enter into the high pressure precooler and from there to dual tower CO2 dryer
  • It also passes through liquefaction system and nox removal tower
  • Finally, the liquid goes directly to the storage tank where the gas stores for a particular period of time
