Ashirwad Carbonics (India) Pvt Ltd

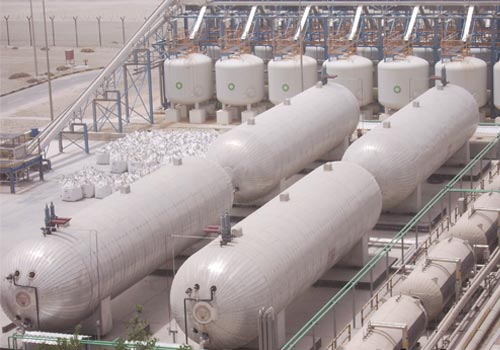

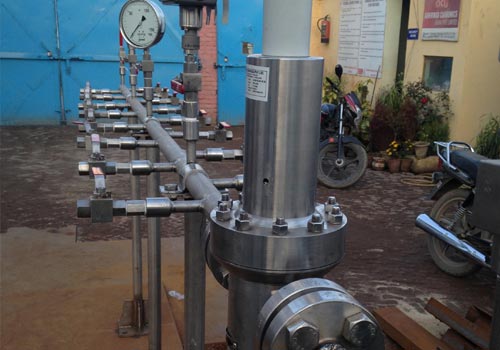

CO₂ Dosing System for Water Neutralization is specifically developed for those applications where exact quantity of CO₂ gas has to be dosed. We are a leader in manufacturing the world class dozing system and recently we have supplied the world largest CO₂ dosing system of capacity 1000mt per day in UAE. The dosing system is integrated with filtration unit, CO₂ gas flowmeter, CO₂ pressure reducing valve, pressure gauges, safety valves, regulating valve and a completely pre-wired control cabinet. The system is provided with a manual by-pass line that enable easy and quick changing of a filter cartridge. We use stainless steel to manufacture the system, hence it is very resistant to corrosion and extends the products life cycle.
Features

• Easy to install
• Very accurate in dosing
• Robust stainless steel construction
• No auxiliary equipment like air compressor required
• Only power supply is required





Specifications

• Temperature treated water : 15 to 35 °C
• Side stream water pressure : 4 bar max
• Min. ambient air temperature : 10 °C, optional with heater for vaporiser down to 4 °C
• Max. ambient air temperature : 38 °C, optional with air conditioned cabinet up to 50 °C
• Humidity : 34 % to 99 %
• Max. wind speed 19.03 m/s
• Uniform building code : seismic zone 2A
