Home   »   Products   »   Nitrous Oxide Gas Plants

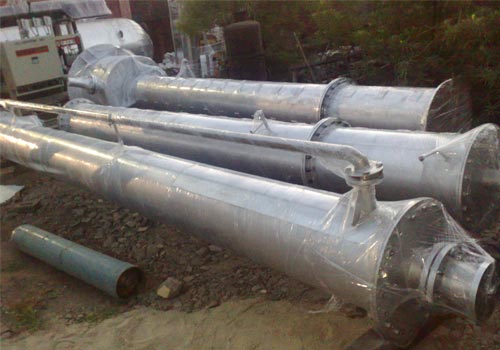

Nitrous Oxide Gas Plants

Ashirwad Carbonics (India) Pvt Ltd

Nitrous Oxide Gas Plants is developed for producing gas in conformation with the Indian pharmacopoeia. The gas produced can be also stored in liquid state for direct filling into the cylinders. The nitrogen gas produced from the plant has varied applications such as in anesthesia and in aerosols and food materials as a carrier propellant.



Ashirwad Carbonics (India) Pvt Ltd

Features


  • Electrically heated pots
  • Temperature controllers
  • Purification system for removal of impurities
  • Regeneration facility
  • Laboratory and quality control
  • Equipment safety systems
  • Water cooling facility

Ashirwad Carbonics (India) Pvt Ltd

Process Description


  • Ammonium nitrate is heated at a temperature of about 2500C
  • Heat decomposes ammonium nitrate into a mixture of nitrous oxide and super heated steam
  • It also contains impurities such as ammonium nitrate fumes, nitrogen and other oxides of nitrogen
  • Scrubbing with water, caustic soda and sulphuric acid completely removes the impurities and steam
  • At top of the storage vessel, compressed nitrous oxide in liquid state is present from which nitrogen is separated easily



We welcome your enquiry & try to respond in shortest possible time

Ashirwad Carbonics (India) Pvt Ltd

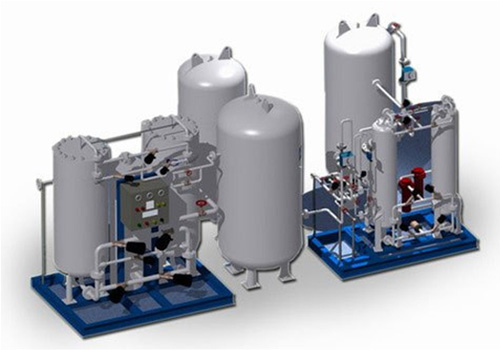

PSA Nitrogen Plant


  • PSA Nitrogen Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Very compact skid-mounted units supplied, duly assembled from our factory
  • Start-up time only 5-minutes to get nitrogen of desired purity
  • No petroleum fuels required – only electrical power and cooling water needed for nitrogen generation
  • Life of carbon molecular sieves guaranteed for more than 10 years on continuous operation basis
  • All the plants are tailor made and adjusted to give nitrogen of desired quality depending upon its application

Ashirwad Carbonics (India) Pvt Ltd


Process Descriptions


  • It works on pressure swing absorption technology developed by carbon tech, Germany(the technology inventors) and upgraded by our vast experience on the system
  • The Nitrogen plant consists of twin tower system that is filled with a special grade of carbon molecular sieves
  • Two absorption towers are interconnected with auto change over valves
  • Nitrogen gas of desired purity(up to- 10 ppm level) is stored in the nitrogen surge tank
  • For big size plants nitrogen produced from PSA skid is approximate with 1% oxygen which is reduced to the desired level up to 1 ppm by providing deoxo/ dryer system in the downstream as per the client's requirement
  • To monitor the impurities (Oxygen Moisture)in the product gas, online analyzers are provided



We welcome your enquiry & try to respond in shortest possible time

Ashirwad Carbonics (India) Pvt Ltd

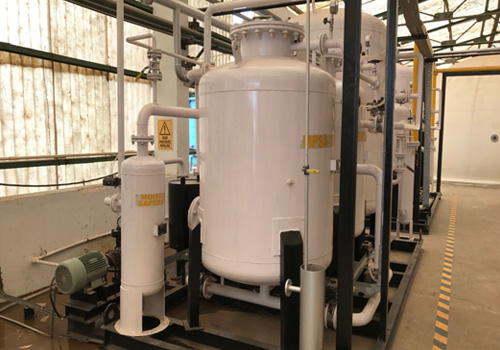

PSA Oxygen Plant


  • PSA Oxygen Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Very compact skid-mounted units supplied, duly assembled from our factory
  • Start-up time only 5-minutes to get nitrogen of desired purity
  • No petroleum fuels required – only electrical power and cooling water needed for nitrogen generation
  • Life of carbon molecular sieves guaranteed for more than 10 years on continuous operation basis
  • All the plants are tailor made and adjusted to give nitrogen of desired quality depending upon its application

Ashirwad Carbonics (India) Pvt Ltd


Specefications


Purity Of Oxygen95+-3%
Flow Rate(LPM)/(Nm3/hr)100 LPM / 6 Nm3/Hr
Air Compressor (kW)11 kW
Technology UsedVPSA (Vacuum Pressure Swing Adsorption)
Purity Of Nitrogen95+-3%
ApplicationIndustrial / Medical
Approval & LicensesISO
BrandAshirwad Carbonics
Type of CompressorLubricated Screw Air Compressor
Compressor BrandReputed Make
Type of DryerRefrigerated Type Air Dryer
No. of Air Receiver2
No. of Storage Tank / Buffer Tank2
Buffer Tank Size1
Power Supply / Consumption1
Automation GradeFully-Automatic
DesignStandard
Filtration Stages3 Stage



We welcome your enquiry & try to respond in shortest possible time

Ashirwad Carbonics (India) Pvt Ltd

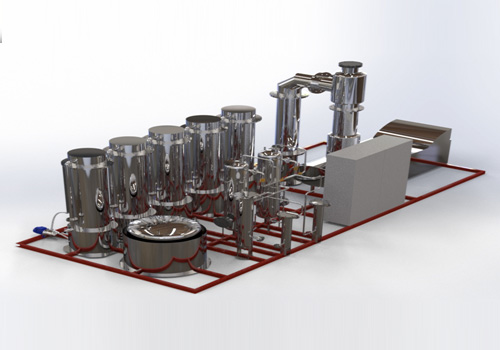

Nitrous Oxide Gas Plant


Safe and economical, the Nitrous Oxide plant from Ashirwad Carbonics (India) Private Limited is a plant with an efficient Generation system which reduces power consumption and adds on to safety. A storage battery assembly for separation of Nitrogen is another safety feature with our Plants. The gas manufactured conforms to all International (European, American, Indian) standards and is stored in liquid state which can be directly filled into cylinders and can be used for different Industry for Different Purposed.

  • Nitrous Oxide Gas Plant


Ashirwad Carbonics (India) Pvt Ltd

Features


  • Product purity meets world standards.
  • Special safety features incorporated in the plant.
  • Stainless Steel Construction.
  • Decomposer and Melter separately mounted and controlled.
  • Online moisture meter installed.
  • Complete laboratory equipment for testing of gas is provided with plant as standard accessory.
  • Double drier provided.
  • Skid mounted; modular design occupies less space.



We welcome your enquiry & try to respond in shortest possible time
